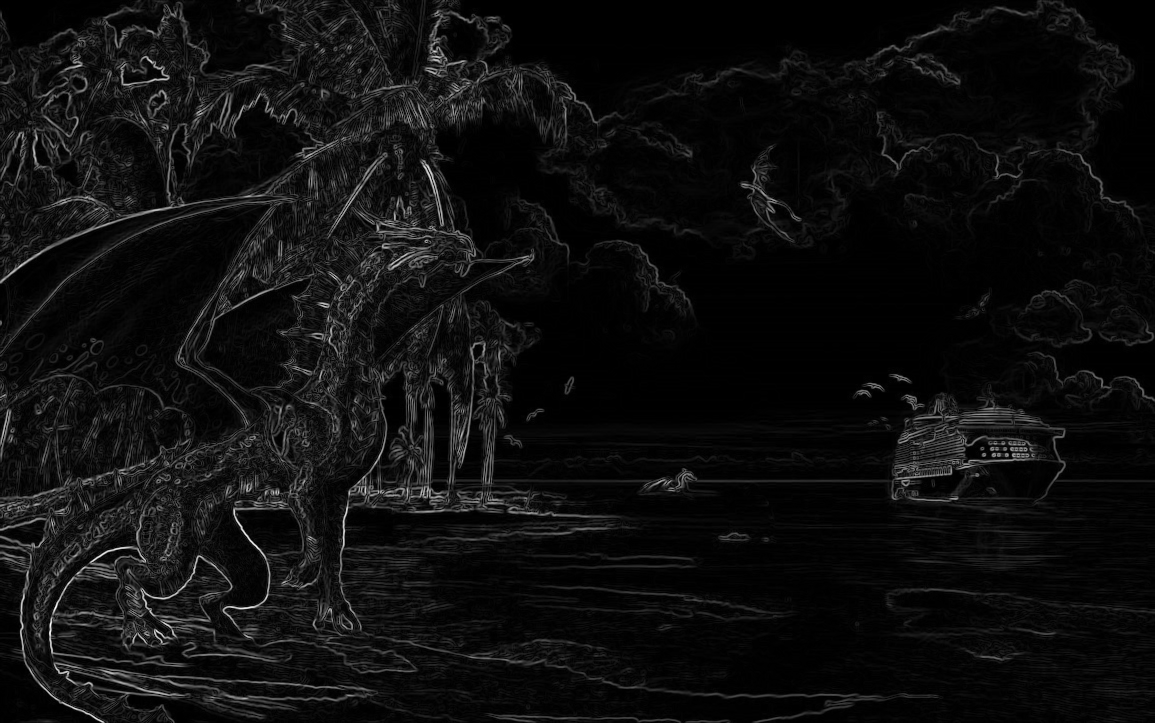

Gradient Magnitude Energy Function
Gradient Magnitude Energy Function
This project crops images using seam carving, detailed in this paper.
I implemented seam carving using a basic dynamic programming approach. Given an energy function, the program looks at each pixel starting at the top, selects the pixel with the lowest total energy from the above three pixels and stores the sum of the total energy and the current energy value at the pixel's location. The seams are determined by starting at the bottom and finding the pixel with the lowest total energy and tracing the path to that pixel back up to the top. The energy function I used was the gradient magnitude, calculated with MATLAB's imgradient function.
1155 x 723 -> 800 x 600
Source
Original
Cropped
1000 x 624 -> 900 x 600
Source
Original
Cropped
800 x 400 -> 300 x 300
Source
Original
Cropped
708 x 570 -> 500 x 400
Source
Original
Cropped
Original was scaled from 5100 x 3300. 2000 x 1294 -> 1500 x 1100
Source
Original
Cropped
1920 x 1200 -> 1000 x 720
Source
Original
Cropped
Original scaled from 1920 x 1080. 1200 x 750 -> 1000 x 600
Source
Original
Cropped
720 x 500 -> 500 x 500
Source
Original
Cropped
The energy function didn't weight the dragon's neck very strongly, leading to
a dragon with a broken neck as the image got smaller.
1000 x 624 -> 700 x 500
Source
Original
Cropped
This image has too many diagonal lines and the seams break them every time one is removed.
800 x 534 -> 500 x 400
Source unknown. Was originally found in Google Image search and reverse image search
provided no results.
Original
Cropped
The thin horizontal lines on the left of the image have severe artifacts
from being thin horizontal lines caught in a seam.
1920 x 1080 -> 1280 x 720
Source
Original
Cropped
